Lec 5: Machine Level Programming - Basics¶

This course uses Intel 64-bit version of the instruction set.

The history of Intel x86(-64) ISA, ARM and micro processors can be found here (pdf).

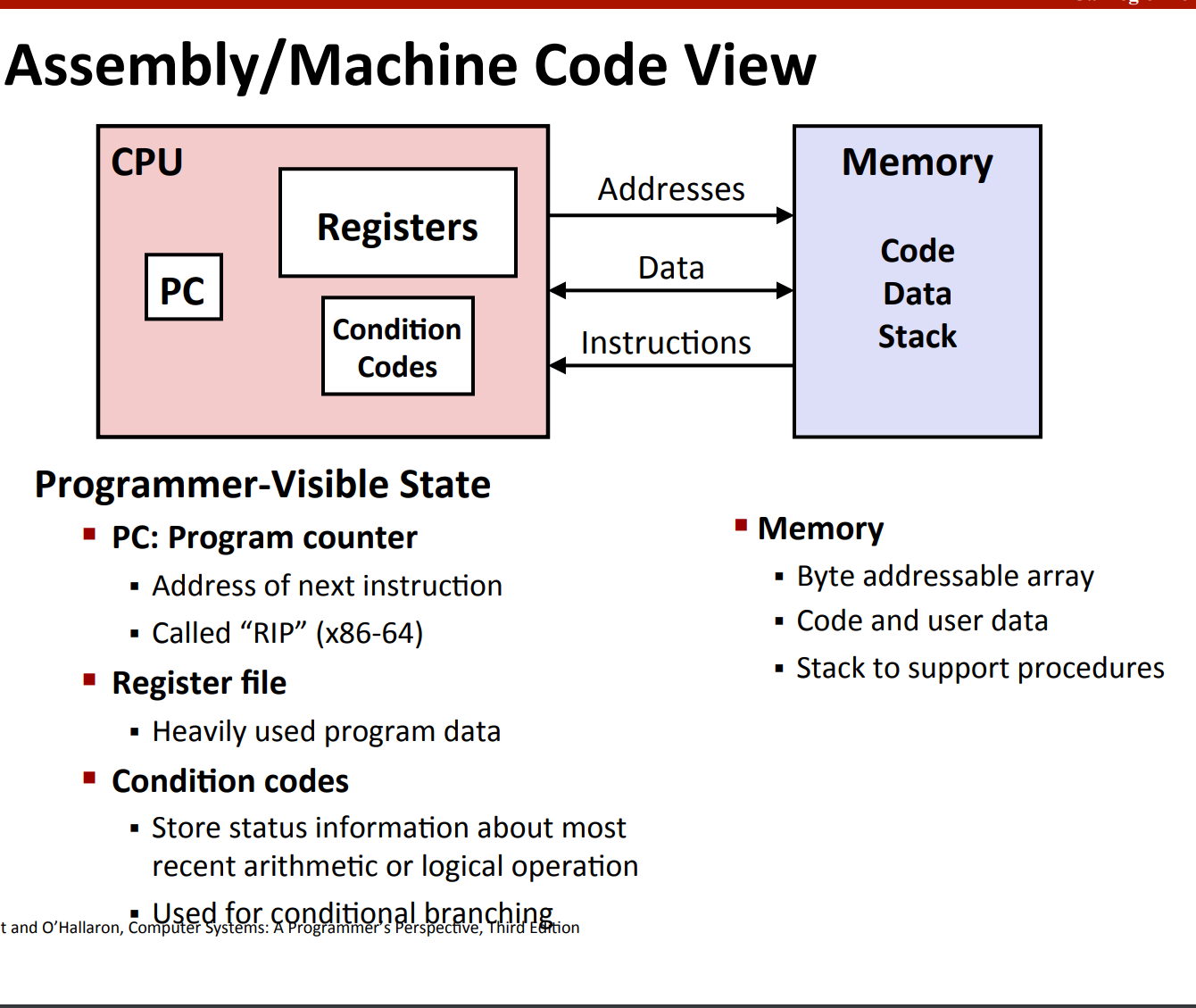

ASM Code View¶

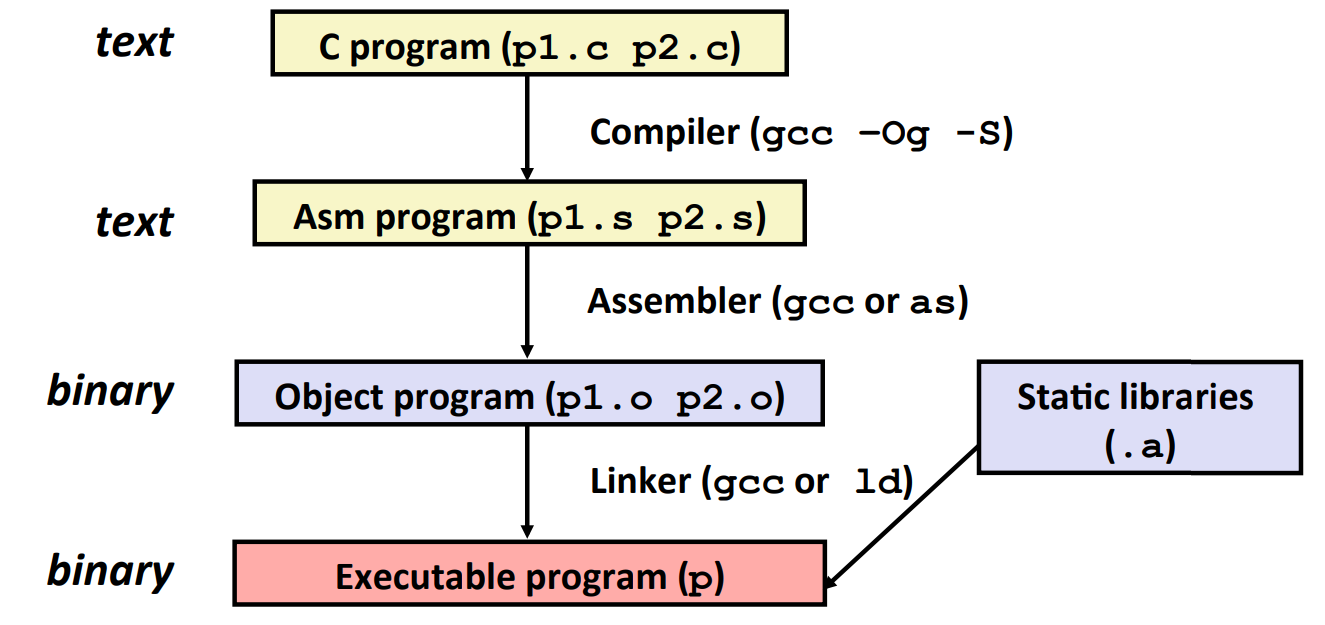

Turn C into Object Code¶

Note: Even when it is turned into the executable program, it still needs to include some static libraries when first running.

A Non-trivial Example¶

Note: Please use gcc -S -Og -masm=att filename.c -o filename.s, where -Og stands for "don't optimize too much, since I want read it", and -masm-att stands for "plz always output AT&T style code which we often see on Unix machines but not Windows".

void sumstore (long x, long y, long *dest)
{
        long t = plus (x,y);
        *dest = t;
}

It's assembly code is (in AT&T format):

sumstore(long, long, long*):
        pushq   %rbx
        movq    %rdx, %rbx
        call    plus(long, long)
        movq    %rax, (%rbx)
        popq    %rbx
        ret

Quick Note: Disassemble¶

If you get a binary executable file, you can use objdump -d xxx to disassemble it (and it will give you assembly code). Also, you can use gdb to disassemble as well.

Basics of The x86-64 Assembly Code¶

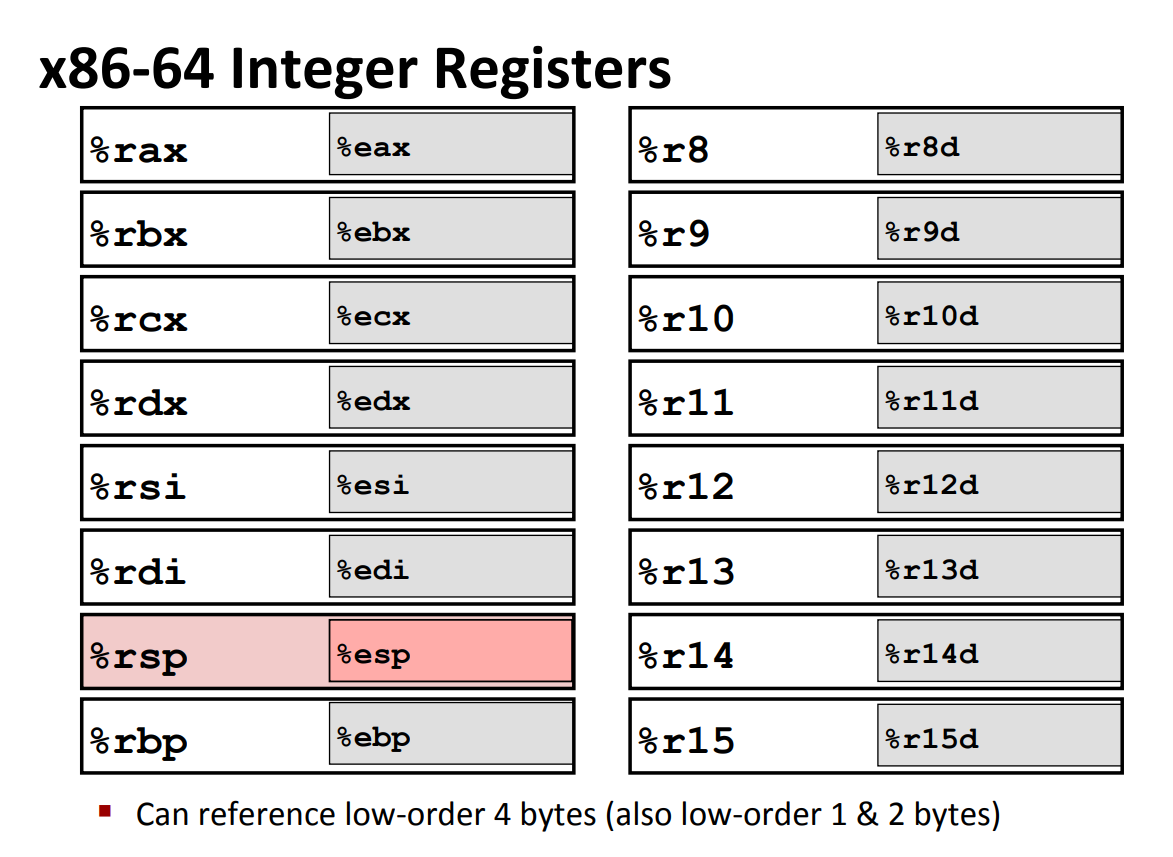

Registers of x86-64¶

Prenote: The weird names of registers of x86-64 are due to the legacy thing.

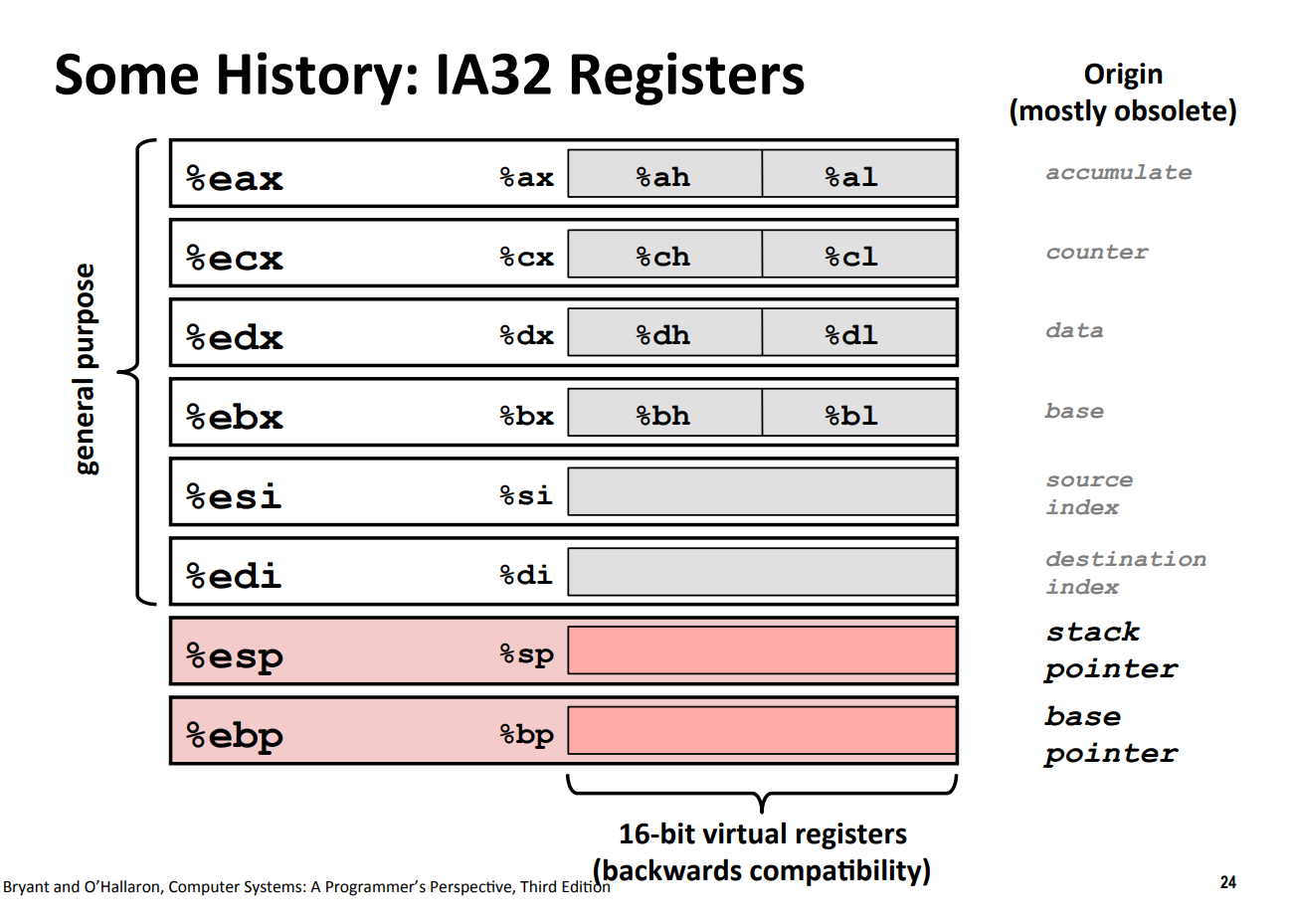

Also, for each register starting with e (which indicate it's a 32-bit register), there are even smaller registers that you can use, which are shown in the graph down below:

%rax: 64-bit, %eax: 32-bit, %ax: 16-bit, %ah, %al: 8-bit.
Also note that the name of these registers have origins (shown at the right side). Most are obsolete (i.e. have become legacy), but still some have a specific purpose:
%esp: pointing to the top of a stack
%ebp: base pointer, although not commonly used today

Operations¶

Why these operations are ended with "q"? Because there are 64-bit operations - act on quadwords.

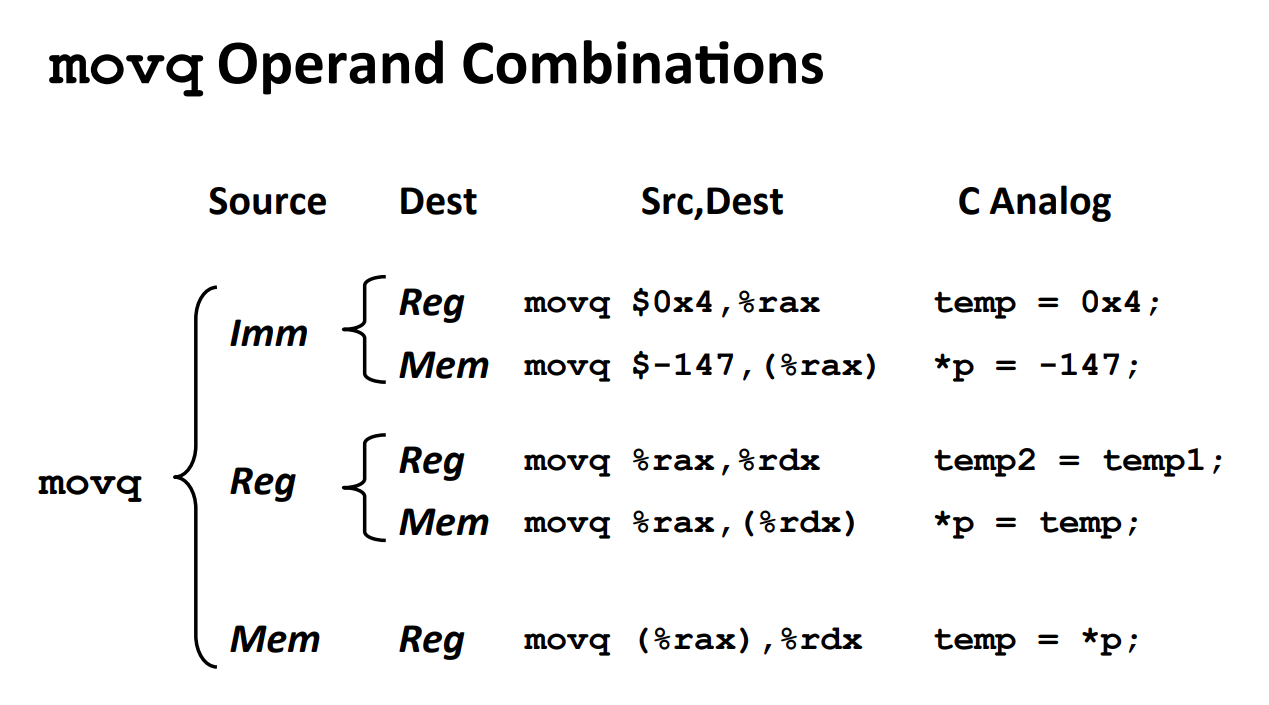

`movq`¶

movq Source, Dest: move data

There are three supported operand types
immediate
register
memory

`leaq`¶

leaq Address, Dest: load the ADDRESS into the destination

Computing address without memory reference: p = &x[i]
Computing arithmetic expressions of the form \(x+k*y\)
k = 1, 2, 4, or 8

Example: x * 12

m12(long):
        leaq    (%rdi,%rdi,2), %rax # %rax = %rdi + 2 * %rdi = 3 * %rdi
        salq    $2, %rax            # %rax <<= 2, i.e %rax = 2^2 * 3 * %rdi = 12 * %rdi
        ret

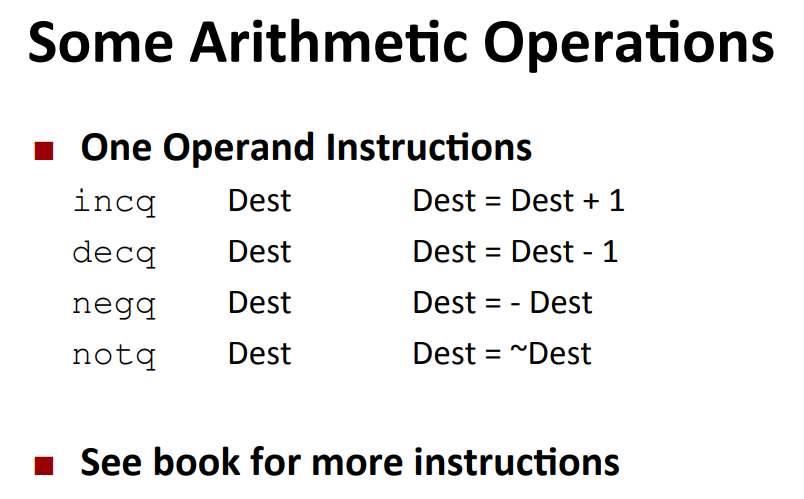

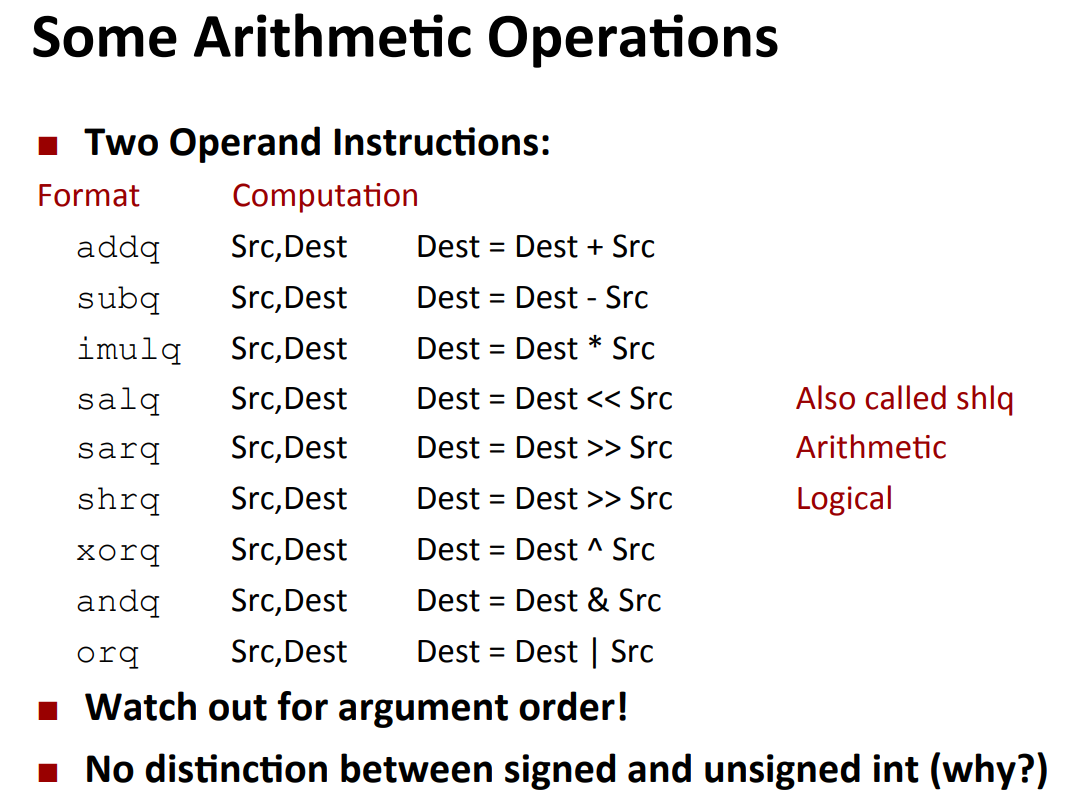

More Operations!¶

Addressing Modes¶

Normal: Mem[Reg[R]]
e.g. movq (%rcx), %rax
Displacement: Mem[Reg[R] + D]
e.g. movq 8(%rcx), %rax
General Addressing D(Rb,Ri,S): Mem[Reg[Rb] + S * Reg[Ri] + D]
more precisely: D=0(Rb=0,Ri=0,S=1)
- So you can just use part of it
- e.g.1 (Rb,Ri) is equivalent to 0x0(Rb,Ri,1)
- e.g.2 D(,Ri, S) is equivalent to D(0x0, Ri, S)
e.g. movq 16(%rdi, %rax, 8) = long t0 = xp[*yp + 2]
somewhat resembles *(arr + sizeof(typeof_arr) * index + D)
