7. Classes

Classes¶

Comparison between `struct` and `class`¶

Class contains

a sequence of objects of various types
a set of functions for manipulating these objects
a set of restrictions on the access of these objects and function

C++ struct is class without class restrictions.

C struct is class without class restrictions and member functions.

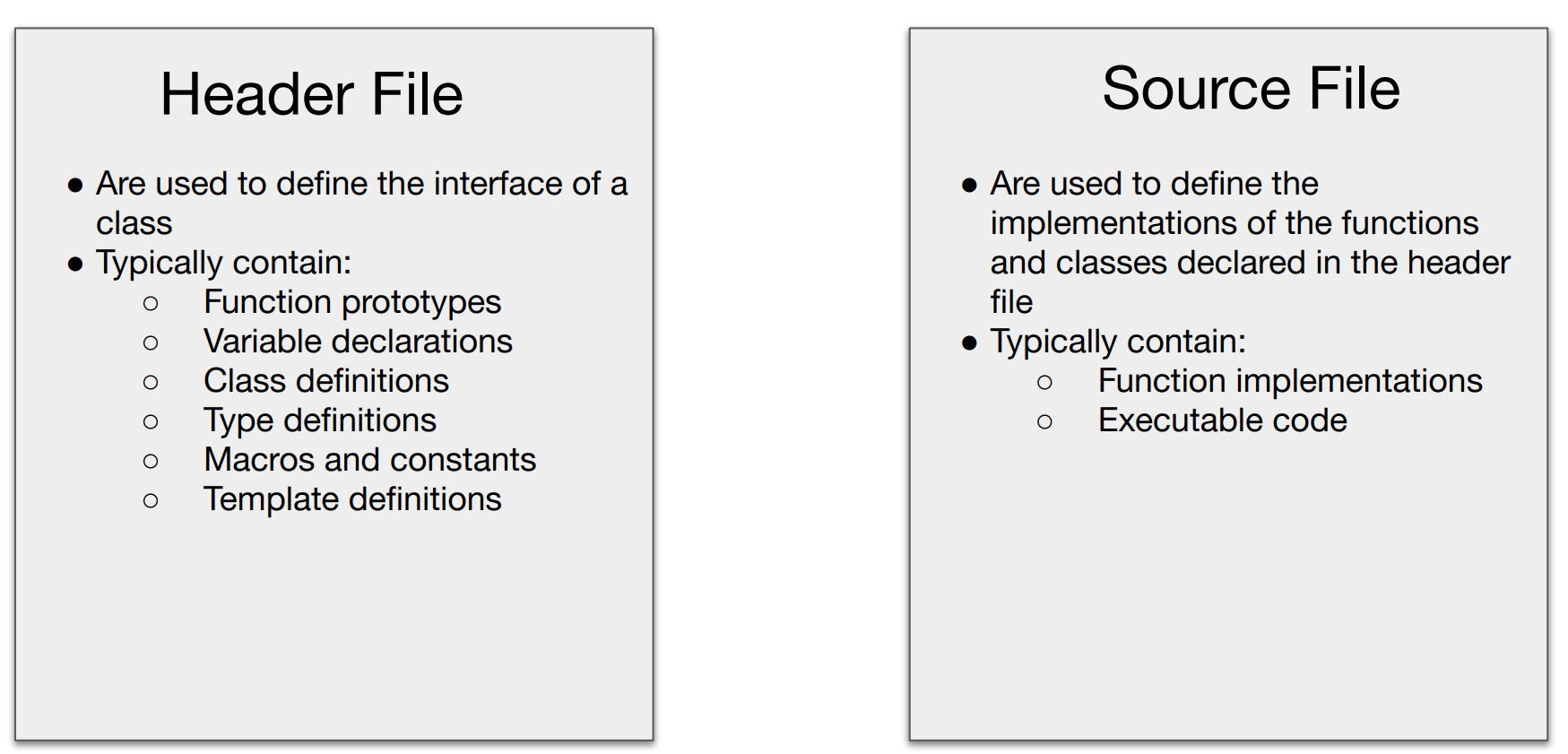

`.h` vs `.cpp`¶

In short, apart from function implementations and executable code, other stuff are usually stored in ".h" file.

Also, header file is interface,whereas source file is logic.

Class Design¶

A constructor and a destructor
Private member functions/variables
Public member functions (interface for user)

Demo:

lec7.h

##pragma once
##include <string>

class Student
{
private:
    std::string name;
    std::string state;
    int age;

public:
    /// constructor for our student
    Student(std::string name, std::string state, int age);
    Student();

    /// method to get name, state, and age, respectively
    std::string getName();
    std::string getState();
    int getAge();
};

lec7.cpp

##include "lec7.h"
##include <string>

/// Constructors
/// C++11 support "list initialization constructor" (similar to uniform initializaiton, but not the quite)
Student::Student() : name{"John Smith"}, state{"Oklahoma"}, age{17} {}

Student::Student(std::string name, std::string state, int age) : name{name}, state{state}, age{age} {}

/// Destructor
/// We don't have to define destructors explicitly
/// Just implement it in the source file
Student::~Student() {}

/// Member functions
int Student::getAge()
{
    return this->age;
}

std::string Student::getName()
{
    return this->name;
}

std::string Student::getState()
{
    return this->state;
}

Type aliasing¶

In C++, we prefer using to typedef in that:

They (using and typedef) are largely the same, except that using is compatible with templates, whereas the C style typedef is not.

Therefore, we can make slight adjustments to the code mentioned above in order to make it more concise.

##pragma once
##include <string>

class Student
{
private:
    using String = std::string;
    String name;
    String state;
    int age;

public:
    /// constructor for our student
    Student(String name, String state, int age);
    Student();

    /// method to get name, state, and age, respectively
    String getName();
    String getState();
    int getAge();
};

Class Hierarchy¶

Base Class and Subclass¶

Inclusion polymorphism can be implemented by base-class-sub-class hierarchical structure.

Example:

class Shape {
public:
    virtual double area() const = 0;
};

class Circle : public Shape {
public:
    Circle(double radius): _radius(radius) {}
    double area() const override {
        return 3.14 * _radius * _radius;
    }
private:
    double _radius;
};

class Rectangle : public Shape {
public:
    Rectangle(double height, double width): _height(height), _width(width) {}
    double area() const override {
        return _height * _width;
    }
private:
    double _height, _width;
};

Class Inheritance vs Container Adapter¶

Class inheritance is about subclass inheriting (virtual) methods from base class.

Container adapter provides interface for several classes and act like a template parameter.

Footnote: Polymorphism¶

There are three polymorphisms that are popular and broadly recognized in C++, namely:

Ad-hoc Polymorphism
Achieved through method overloading
Allows for flexibility in return type, argument type, and implementation
- This makes it highly adaptable
Parametric Polymorphism
Implemented using templates
Return type, argument type, and implementation are strictly defined and determined by the templates
subclass/inclusion polymorphism

by class hierarchy

When we refer to "class hierarchy", we're specifically focusing on functions that are marked with the override keyword.

class Base {
public:
  virtual int func (double i) = 0;
};

class Derived : public Base {
public:
    /// we consider this.
  int func (double i) override {
        return int(i);
    }

    /// not this!!!
    double func (int i) {
        return double(i);
    }
};

Consistent return type, argument type. Flexible implementation.
